Soil mixing

Soil-Mixing-icon
  • Economical and flexible in geotechnical and in site remediation applications
  • Quiet and relatively free of vibrations and of surface spoils
  • Quick implementation with no shoring nor dewatering necessary
  • Columns can be installed in a variety of grid patterns
  • Soft soils
  • Non-cohesive soils
  • High-moisture soils
  • Can treat soils up to 30 m (from surface)
  • Bearing pressure of up to 400 kPa SLS
  • Single or multiple augers of various diameters can be utilized

Soil mixing is a term used to describe the process of mixing binders or reagents with soils. At REMEA, we specially design and build deep and shallow mixing rigs to vigorously mix chemical (or biological) amendments to contaminated soils.

Discover Soil Mixing’s geotechnical applications

Installation process

Soil-Mixing-gif

Reagents used to remediate the soil are injected through the hollow core of the boring tool from bottom to top. The blending process works on the entire soil profile, thus eliminating any stratifications.

Deep soil mixing involves the use of a single, dual or triple circular paddle mixing toll which installs columns to more than 20m. Auger diameter can be of a wide range of geometry and diameters (0.1m to >2m). Depending on the application, columns can be installed to form a continuous row, in a cell pattern, or can be used for mass treatment.

Grid patterns

Grid-icon-wall

Wall-type

A wall-type installation is typically only used when installing a permeable reactive barrier to target and remediate a contaminant plume as it moves away from the source zone.

Grid-icon-cell

Cellular-type

Also known as in-situ stabilization (ISS), is a preventative measure used to contain (or stop) the spreading of contaminants from the source zone. ISS often involves addition (or mixing) of a stabilizing agent to the soil matrix and often used as cut-off walls.

Grid-icon-mass

Mass-type

Mass (or shallow) soil mixing is typically limited to a depth of 5m since it is performed with a bladed rotary mixing tool that is attached to the arm of an excavator. Rather than columns, the mixing is performed in linear panels that are overlapped to result in mass or full treatment of the improved zone.

Applications

During a site remediation process, soil mixing is used to reduce soil and groundwater pollution by mechanically forcing contact between reagents and contaminants. Depending on the selected reagent, this results in treatments that neutralize, demobilize, or confine pollutants that are present in the soils.

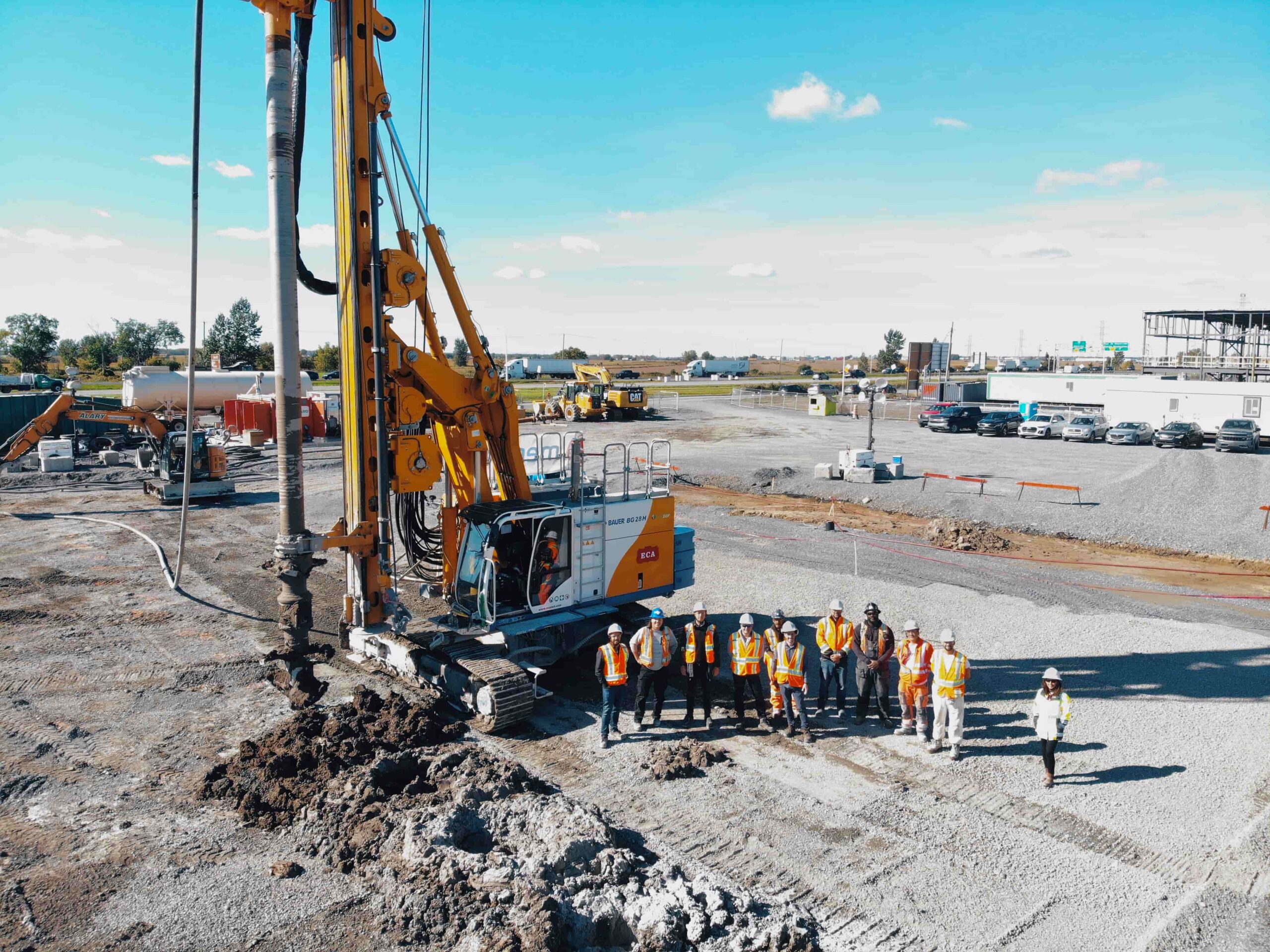

Soil-Mixing-image

See how our mixing rigs can be used for

Frequently asked questions (FAQs)

Should I inject or mix my contaminated site?2023-01-12T22:50:00+01:00

Injection of remedial agents into the soil subsurface is the most common in-situ remedial approach used in Canada… and with reason. In most cases, site injection will yield desired results for a low cost.

There are, however, some sites where risk of gaps ‘breakthrough’ contaminations are simply not an option that can be considered. This is where physical mixing of the contaminated soil with remedial agents will yield best results.
